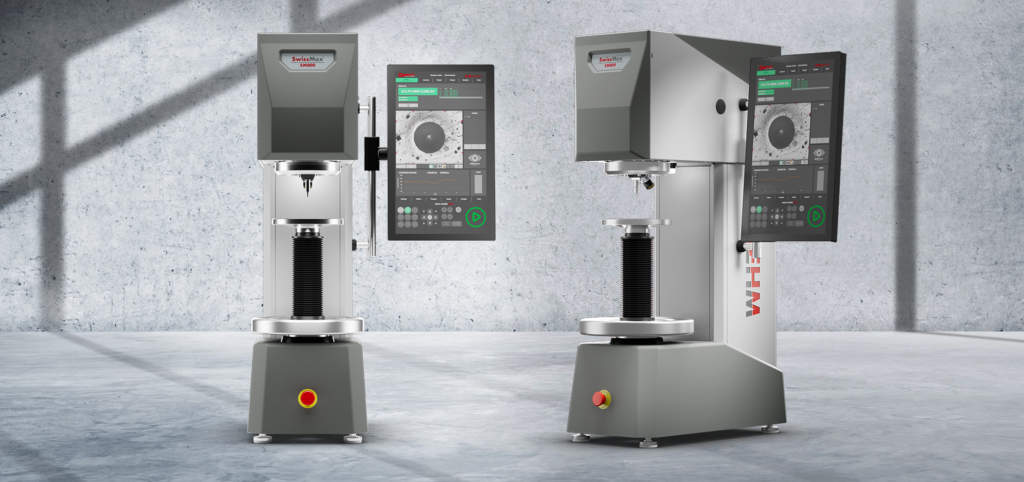

SWISSMAX 800

AUTOMATIC HARDNESS TESTER

Introducing the all-new SM800, a modern evolution of the classic universal hardness tester first introduced in the 1960s.
Building on decades of proven reliability, the SM800 sets a new benchmark for performance, precision, and ease of use in hardness testing.
The SM800 combines proven reliability with the latest innovation—engineered for today, ready for tomorrow.

The SM800 machine is equipped with an advanced optical system, delivering exceptional clarity and high magnification.
It ensures outstanding sharpness and depth of field, with precise color correction.
The newly designed objectives offer an extended working distance, providing enhanced positioning flexibility and comfort for the user.

KEY FEATURES

  • Electronic Load Cell, Closed Loop test load system guarantees high precise test load application through millions of data sampling.
  • Wide test load 0,5kgf up to 250kgf provides test procedures for Vickers, Knoop, Brinell, Rockwell, Superficial Rockwell all according to ISO, ASTM & JIS standards.
  • Autofocus system for Vickers, Knoop & Brinell provides fast sharp image
  • Indenter & Objective swing system, automatic test procedure
  • Integrated High Definition camera system 11 megapixels
  • EYEdentify™ software for manual & automatic measurement
  • All objectives can be easily changed in just a second, due to quick change system
  • Large heavy handwheel with precise ‘’Swiss feel’’ vertical spindle
  • The SWISSMAX 800 has an integrated controller MS Windows i7 which runs the testers operating system EYEdentify™ and provides full tester control. Can also be connected to common External PC with a (recommended) 22’’ or more display.
