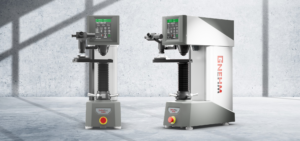

SWISSMAX 400

AUTOMATIC HARDNESS TESTER

The SWISSMAX SM-400 is a robust, universal hardness tester engineered for general workshops, schools, and training centres.
It offers full flexibility to perform hardness tests across all common scales—Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell and Shore—using test loads from 1 kgf up to 250 kgf.

  • Rockwell & Superficial Rockwell
    Depth indentation measured with a high-precision linear gauge.
  • Vickers & Brinell
    Optical measurements via a high-quality microscope with
    electronic eyepiece/readout and interchangeable objectives.
  • Instant Results
    All measurements are displayed automatically at the touch of a button on the full-colour industrial touch screen.



KEY FEATURES

  • Electronic load-cell, closed-loop system for ultra-precise test load application (millions of data samples per test).
  • Wide load range 1 kgf – 250 kgf covering all major hardness methods according to ISO, ASTM & JIS standards.
  • Indenter & objective slide system with automatic test procedures.
  • High-quality microscope with electronic eyepiece; low-magnification objective includes ring-light illumination for superior Brinell indent visibility.
  • Manual lead spindle with precise “Swiss feel”.
  • Integrated controller running the tester’s operating system; can also be connected to an external PC.
  • USB 2.0 support for data export and external connectivity.
